Grooved Pipe Fitting

• Application
• other, Fire Protection, HVAC, Water & Wastewater, Industrial Piping

• Coating Type
• Fusion Bonded Epoxy

• Color
• Red

• Connection
• Other, Grooved Coupling

• Connection Type
• Grooved End

• Diameter
• 50 mm to 300 mm Millimeter (mm)

• Flexibility
• Rigid

• Material
• Other

• Material Grade
• Grade 65-45-12

• Outer Diameter
• 2 to 12 (50 mm to 300 mm) Millimeter (mm)

• Product Type
• Other, Grooved Pipe Fitting

• Rated Pressure
• 300 psi (2.07 MPa)

• Sealing Type
• EPDM Gasket

• Section Shape
• Round

• Shape
• Other, Elbow (90)

• Standard
• Other

• Surface Treatment
• Other, Epoxy Coated

• Temperature Range
• -20C to 110C Celsius (oC)

• Tensile Strength
• Minimum 448 MPa Megapascals (MPa )

• Thickness
• 5-10 Micrometers (um)

• Tolerance
• 0.5 mm Millimeter (mm)

• Usage
• Pipe Connection / Piping System

• Yield Strength
• Minimum 310 MPa

• Application
• other, Fire Protection System

• Coating Type
• Painted finish

• Color
• Red

• Connection
• Other, Grooved

• Diameter
• 2 inch Inch (in)

• Flexibility
• Non-flexible

• Surface Treatment
• Other, Red Painted

• Usage
• Fire Fighting

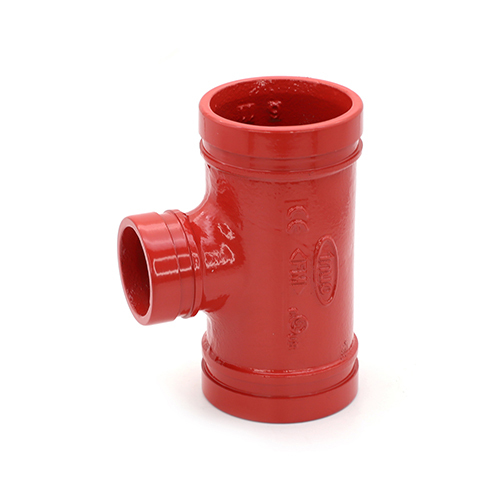

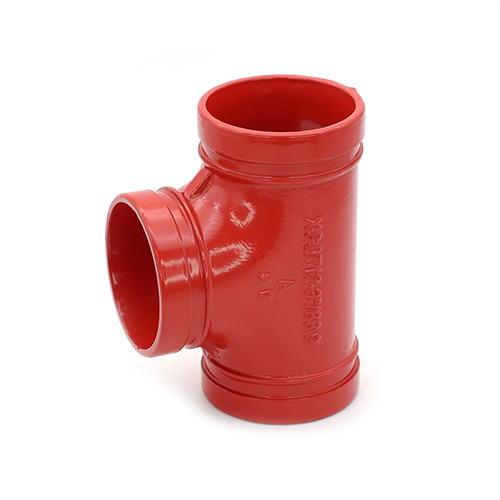

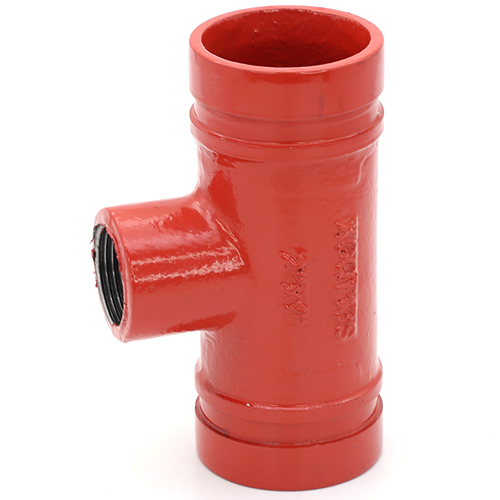

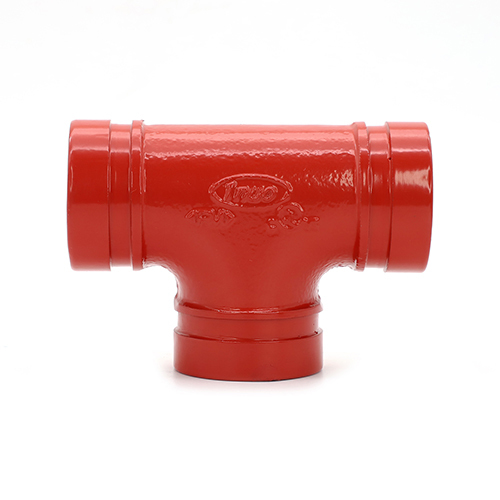

• Application
• Hydraulic Pipe

• Coating Type
• Epoxy

• Color
• Red

• Connection
• Other

• Connection Type
• Grooved

• Fittings
• Elbows, Tees, Couplings

• Material
• Iron

• Outer Diameter
• 114.3 Millimeter (mm)

• Pipe Type
• Grooved

• Pressure Ratings
• 300

• Product Type
• Tee

• Rated Pressure
• 300

• Shape
• Reducing

• Standard
• ASME, ASTM

• Temperature Range
• 110 Celsius (oC)

• Tensile Strength
• 476 Megapascals (MPa )

• Thickness
• 5 Millimeter (mm)

• Tolerance
• 4 Inch

• Usage
• Fire Protection

• Warranty
• 10

• Working Presssure
• 1200

• Yield Strength
• 476

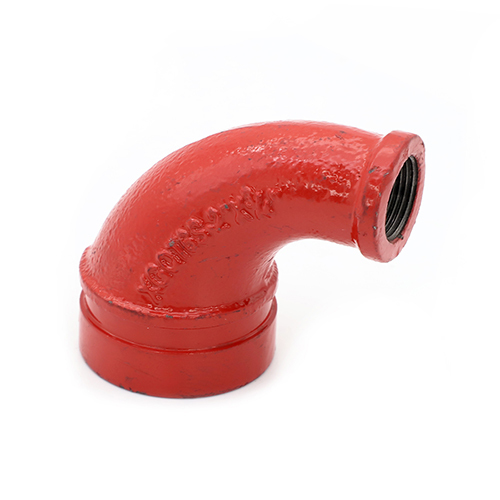

• Application
• other, Drainage, Sewage, Irrigation, Industrial, Fire Fighting, Water Supply

• Bend Radius
• 90 degree elbow

• Coating Type
• Painted

• Color
• Red

• Connection
• Other, Grooved

• Connection Type
• Grooved

• Diameter
• 40 mm

• Flexibility
• Rigid

• Material
• Other , Ductile iron

• Product Type
• Other, Pipe Reducer

• Rated Pressure
• PN25

• Section Shape
• Round

• Shape
• Other, Reducer elbow

• Standard
• Other, IS 9523

• Surface Treatment
• Painted

• Usage
• Pipe fitting connection

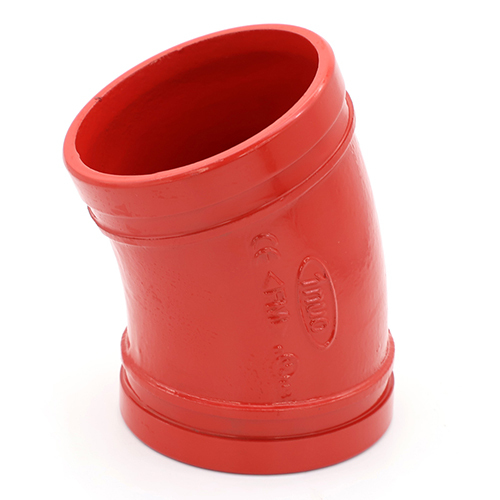

• Application
• other, HVAC, Process Piping, Fire Fighting, Water Line

• Bend Radius
• 11.25 Degrees

• Coating Type
• Epoxy

• Color
• Red

• Connection
• Other, Grooved

• Connection Type
• Rigid Grooved

• Diameter
• 2 inch

• Flexibility
• Rigid

• Material
• Other , Ductile Iron

• Product Type
• Other, 11.25 Deg Elbow

• Rated Pressure
• 20 bar

• Sealing Type
• EPDM Gasket

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other, ISO Groove Standard

• Surface Treatment
• Other, Epoxy Coated

• Usage
• HVAC, Industrial Piping, Water Supply, Fire Fighting

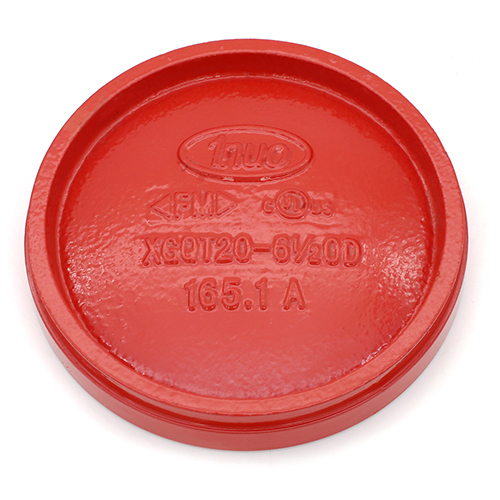

• Application
• other, Industrial, Plumbing, Mechanical

• Coating Type
• Epoxy/Enamel

• Color
• Red

• Connection
• Other, Screw/Threaded

• Connection Type
• Internal threading

• Diameter
• Central hole 20-40 mm (as specified)

• Flexibility
• Rigid

• Length
• Customizable as required

• Material
• Other , Cast Iron

• Material Grade
• FG 200 / EN-GJL 200 / Equivalent

• Outer Diameter
• 75-150 mm (typical)

• Product Type
• Other, Cap With Concentric Hole

• Rated Pressure
• Up to 16 bar

• Sealing Type
• Metal-to-metal

• Section Shape
• Other, Circular

• Shape
• Other, Round/Disc

• Standard
• Other, DIN/ASTM/BS (as per requirement)

• Surface Treatment
• Other, Painted/Coated

• Temperature Range
• -10C to 200C

• Tensile Strength
• Min 200 MPa

• Thickness
• 8-15 mm (customizable)

• Thread Type
• BSP / NPT (as required)

• Tolerance
• 0.2 mm

• Usage
• Pipe / Valve fittings, End Closures

• Yield Strength
• Min 130 MPa
